With Touchless Interface.

A tried-and-true aeroTAP in various scenes!

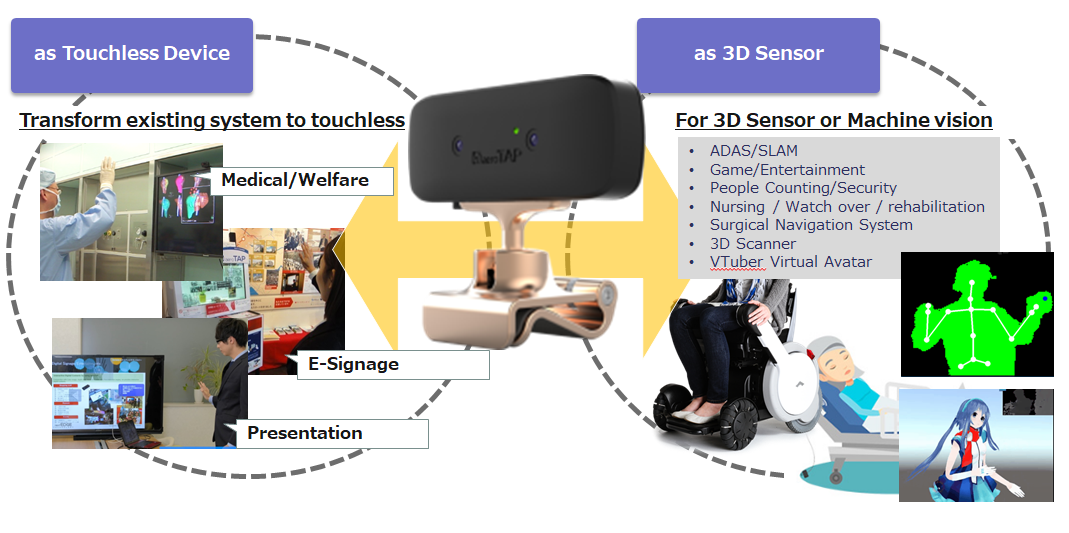

About aeroTAP...

aeroTAP solution consist of Palm tracking Touchless Interface and 3D Sensor using unique Stereo Vision 3D sensors developed by nextEDGE Technology K.K.
In particular, the aeroTAP touchless interface is an unprecedented interface designed for user interface use.
Stereo vision type 3D sensors are expected to be used in many new technological fields and we will support the use for their applications.


aeroTAP Touchless Interface design concept

Minimum resource consumption

aeroTAP is a interface to connect a person and a device. The role for interface is to support the main figure such as the application. aeroTAP evo is designed to keep the resource consumption such as CPU of the computer as low as possible with an effective performance. It also provides intuitive touchless operation according to the type of content you use.

"Make it touchless with aeroTAP..."
aeroTAP will turn the existing application into a touchless system without the need of any development ( customization may be made ).

The resource consumption, which we recently measured, decreased compared to the previous results, while the performance increased. For example, Intel i3 CPU is 5%-10%, Intel i7 CPU is below 5%. In the idle state, Intel i3 is below 5% It can also be used with stick PCs and tablet PCs.

Simple operation and gesture definition

In addition to operation with mouse and keyboard, interface assistant features which will help you operate the application more easily and intuitively.

■ SideIn gesture will provide switching/closing applications or loading specific applications more easily.
■ Virtual button will make operation much easier.
■ Virtual scrollbar enables you to operate scroll up/down, zoom in/out action with one hand.
■ Palm gesture enables you to rotate, Flip and Tap and Drag with one hand.


Enabling touchless access

■ Web contents such as HTML/JavaScript
■ 3D Contents/VR contents developed by Unity
■ Touch Screen based application
■ Others makes more easy access to existing applications



Contact us for more information about aeroTAP Touchless Solution

aeroTAP  evo Touchless Solutions

aeroTAP evo can offer variety of touchless solutions to meet target environment and usage.

■ Palm Tracking  Mode
Basic solution for touchless operation from distance by hand.

■ Nearest Object Tracking Mode
Nearest Object Tracking for near range regardless of Palm.

■ Virtual Touch Screen Mode ( VT Mode )
Seamless interface as Touch Screen by fingertip.

■ Others, Custome touchless solution using Palm or 3D object tracking
We provides custome app development using touchless engine.

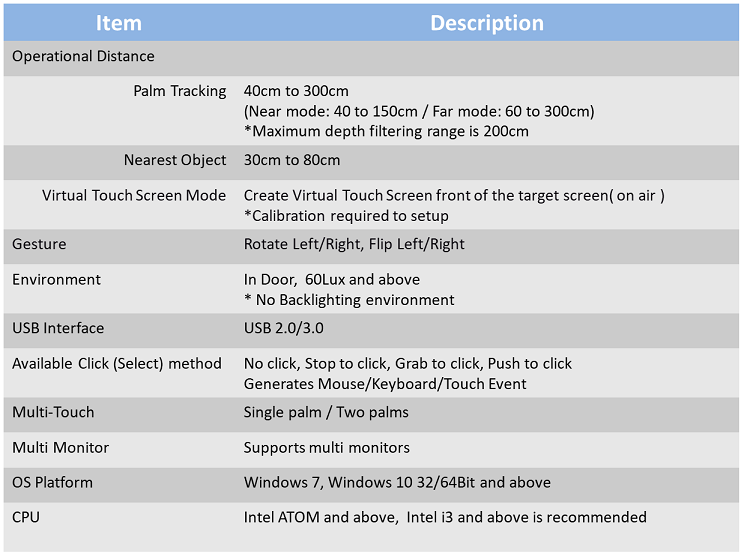

aeroTAP  evo Palm Tracking Mode

aeroTAP evo uses Palm Tracking and distance data to provide fast image processing. it provides palm tracking with very low CPU consumption.

■ Variety of  'Click' actions
You can assign Click actions to each content. Actions are: "Close to Click", "Push to Click", "Stop to Click".

■ Wide range operation
From 50cm to 2.5M. By using Zoom feature, aeroTAP evo can provide long range touchless operation.

■ No development/modification needed
To start touchless operation, just connect aeroTAP camera and run aeroTAP evo.

■ Assistance features
User can add "Virtual Button", "Virtual Scrollbar" to specific application to make operation simple.

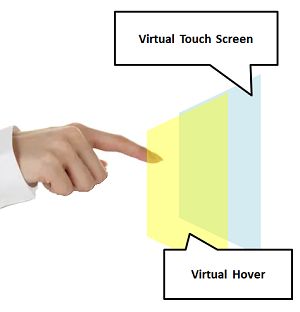

aeroTAP evo Virtual Touch Screen Mode


aeroTAP evo now supports Virtual Touch Screen mode (VT Mode). User can define virtual touch screen within 3D space in camera view
It also supports hover panel on touch panel to indicate pointing.
VT Mode provides Mouse Event mode and Touch Event mode.
All assistance features such as virtual buttons, virtual scroll bar and gestures are also enabled. You can turn existing system to touchless system without making any modification to the system.

* This feature is for embedded purpose only. The calibration process is required to design virtual touch screen.

>> About Virtual Touch Screen Mode

aeroTAP evo Photo Gallery

aeroTAP Target Industry and Usage

aeroTAP solution meets variety of industry and usage.

Advanced Medial Field. Doctors can access any digital information in the surgery room without touching.
>> More about Medical Solutions

Factory and Plants. Operator can access the computer from a distance even when the hand is dirty.

E-Signage, Kiosk, Vending Machine. Devices installed in public areas require a clean and safe interface.
>> More about E-Signage Solutions

Auto-Door, Security Door system. Touchless solution will provide a more secure access.

Smart Devices. Develop a new smart device with touchless feature


Contact us about aeroTAP evo solutions

aeroTAP 3D USB camera (Stereo Vision 3D Sensor)

aeroTAP 3D USB camera can scrape real time stereo images and depth images. aeroTAP can attach multiple 3D camera at the same time without putting extra load on CPU. It is available for IoT device, development of digital contents, real time 3D reconstruction and development of touchless interface.

Usage Example - Object Detection and tracking

aeroTAP 3D USB Camera SDK (Windows OS). Width USB 2.0, capture 640x480 Depth Map at 30 FPS Detect object within 2.5m distance from camera. Object's size (rectangle), gravity center (x,y,z), and peak point (x,y,z)
Detect object within 50cm distance from camera.

Usage Example - 3D Point Cloud

Capture Color image and depth map from aeroTAP 3D USB camera, and process 3D points cloud after 3D noise reductions (Post Process)

About development environment

To make an existing application touchless using aeroTAP evo, you can do so without changing the application.

When using 3D point cloud data on Windows OS, use SDK or OpenNI2 driver which are both free of charge.

For Linux (Ubuntu, Raspberry Pi2/3), please use the sample code.

Contact us about aeroTAP 3D USB Camera and SDK

aeroTAP 3D USB Camera Technical Specifications

Product Name aeroTAP 3D USB G2 Camera
aeroTAP 3D USB Camera aeroTAP 3D USB GS Camera
Product No  20210903-001 20160627-001A ( Type A )
20160627-001B ( Type B )
 20190123-001
Apperance
Interface USB2.0/3.2 Gen1
USB3.0  MicroB Female
USB2.0/3.0
USB3.0  MicroB Female
USB2.0/3.0
USB3.0 MicroB Female
UVC Video Device Name aeroTAP 3D USB G2 Camera aeroTAP 3D USB Camera aeroTAP 3D USB GS Camera
Vendor ID nextEDGE Technology nextEDGE Technology nextEDGE Technology
Weight of Camera head  24.3g 23.8g  31.8g
Sensor resolution, Size OV9714 1296×812、1/4 SOI1280x800、1/4 ONSEMI AR0135、1/3
FOV (DEG)  60H/39V@HD
41H/31V@VGA
40H/30V@QVGA
60H/39V@WVGA(640x400)
40H/30V@VGA
44H/33.7@QVGA
 96H/63V@HD
75H/60V@VGA
HW Post Process Available N/A N/A
Measurable range of depth  150mm ~ 3000mm 200mm ~ 3000mm  250mm ~ 4000mm
Resolution of depth images 320×240, 640×480, 1280×720 320x240, 640x480, 640x400 (Wide angle*1) 8 bit 640×480, 1280×720
Stereo color image resolution 320×240, 640×240, 640×480、1280×480, 1280×720, 2560×720 320×240, 640×240, 640×480, 1280×480 (Left and right image) 640×480, 1280×480, 1280×720, 2560×720
Power 5V/500mA, 5V/600mA 5V/500mA, 5V/600mA 5V/500mA, 5V/800mA
Allowable temperature range Work range: -30℃ ~ 80℃
Stable work range: 0℃ ~ 50℃
*No deformation of the module
Work range: -30℃ ~ 80℃
Stable work range: 0℃ ~ 50℃
*No deformation of the module
Work range: -30℃ ~ 80℃
Stable work range: 0℃ ~ 50℃
*No deformation of the module
Lens Type /w IR Cut Filter Type A (PID 100) /w IR cut filter
 *Recommended for aeroTAP evo
Type B (PID 101) /wo IR cut Filter
Dual Band IR Cut Filter(0~650nm, 850nm)
Contents of Package aeroTAP 3D USB G2 Camera
Camera base
USB3.0 1.5M cable
aeroTAP 3D Camera
Camera base
USB3.0 1.5M cable
aeroTAP 3D USB GS Camera
Camera base
USB3.0 1.5M cable
Product Name aeroTAP 3D USB G2 Camera
Product No  20210903-001
Overview
Interface USB2.0/3.0 USB3.0  MicroB Female
UVC Video Device Name aeroTAP 3D USB Camera G2
Vendor ID nextEDGE Technology
Camera head weight  24.3g
Sensor resolution, Size OV9714 1296×812、1/4
FOV (DEG)  60H/35V@HD
48H/37V@VGA
51H/40V@QVGA
HW Post Process Available
Measurable range of depth  150mm ~ 3000mm
Resolution of depth images 320×240, 640×480, 1280×720
Stereo color image resolution 320×240, 640×240, 640×480、1280×480, 1280×720, 2560×720
Power 5V/500mA, 5V/600mA
Allowable temperature range Work range: -30℃ ~ 80℃
Stable work range: 0℃ ~ 50℃
*No deformation of the module
Lens Type /w IR Cut Filter
Package Contents aeroTAP 3D G2 Camera
Camera Base
USB3.0 1.5M cable

Product Name aeroTAP 3D USB Camera
Product No 20160627-001A ( Type A )
20160627-001B ( Type B )
Overview
Interface USB2.0/3.0 USB3.0  MicroB Female
UVC Video Device Name aeroTAP 3D USB Camera
Vendor ID nextEDGE Technology
Camera head weight 23.8g
Sensor resolution, Size SOI1280x800、1/4
FOV (DEG) 63.2°(H), 42°(V), 71.4°(±3%)
HW Post Process N/A
Measurable range of depth 200mm ~ 3000mm
Resolution of depth images 320x240, 640x480, 640x400 (Wide angle*1) 8 bit
Stereo color image resolution 320×240, 640×240, 640×480, 1280×480 (Left and right image)
Power 5V/500mA, 5V/600mA
Allowable temperature range Work Range: -30℃ ~ 80℃
Stable work range: 0℃ ~ 50℃
*No deformation of the module
Lens Type Type A (PID 100) IR cut filter
 *Recommended for aeroTAP evo
Type B (PID 101) /wo IR cut filter
Package Contents aeroTAP 3D Camera
Camera Base
USB3.0 1.5M cable

Product Name aeroTAP 3D USB GS Camera
Product No  20190123-001
Overview
Interface USB2.0/3.0 USB3.0 MicroB Female
UVC Video Device Name aeroTAP 3D USB GS Camera
Vendor ID nextEDGE Technology
Camera head weight  31.8g
Sensor resolution, Size ONSEMI AR0135、1/4
FOV (DEG)  96H/63V@HD
75H/60V@VGA
HW Post Process N/A
Measurable range of depth  250mm ~ 4000mm
Resolution of depth images 640×480, 1280×720
Stereo color image resolution 640×480, 1280×480, 1280×720, 2560×720
Power 5V/500mA, 5V/800mA
Allowable temperature range Work Range: -30℃ ~ 80℃
Stable Work Range: 0℃ ~ 50℃
*No deformation of the module
Lens Type Dual Band IR Cut Filter(0~650nm, 850nm)
Package Contents  aeroTAP 3D GS Camera
Camera base
USB3.0 1.5M cable

Comparison of aeroTAP 3D USB camera and aeroTAP 3D USB GS camera

Usage comparison
aeroTAP 3D USB 3cm Baseline aeroTAP 3D USB GS 6cm Baseline
connecting to USB2.0, for smart devices with low CPU consumption,such as IoT device connecting to USB3.0, for smart device that needs more detailed depth data
for aeroTAP touchless interface (one person) For gaming, counting people, object detection

Comparison with competitive products
















Capturing the same object (about 1M from camera) simultaneously with 2 cameras.
RAW data both 1280x720 Depth Map
Left image is an output result of aeroTAP 3D GS, the right is Intel D435i
1m from the camera
